TECHNOLOGY
LiDAR Durability
Not simply referring to the physical strength of the product,
but ensuring stable operation in various environments to guarantee safety and reliability.
Not simply referring to the
physical strength of the product,
but ensuring stable operation
in various environments
to guarantee safety and reliability.
AutoL LiDAR, suitable for both indoor and outdoor use
AutoL LiDAR,
suitable for both indoor
and outdoor use
LiDAR durability
meeting durability standards demanded by the automotive industry
자동차의 환경 내구시험을 만족시키는,
극한의 야외환경에 최적화된 라이다 출시
LiDAR durability
Released LiDAR optimized for extreme outdoor environments, meeting durability standards demanded by the automotive industry
Released LiDAR optimized for extreme outdoor environments, meeting durability standards demanded by the automotive industry
Vibration test
Overvoltage test
Temperature cycle test
Waterproof test

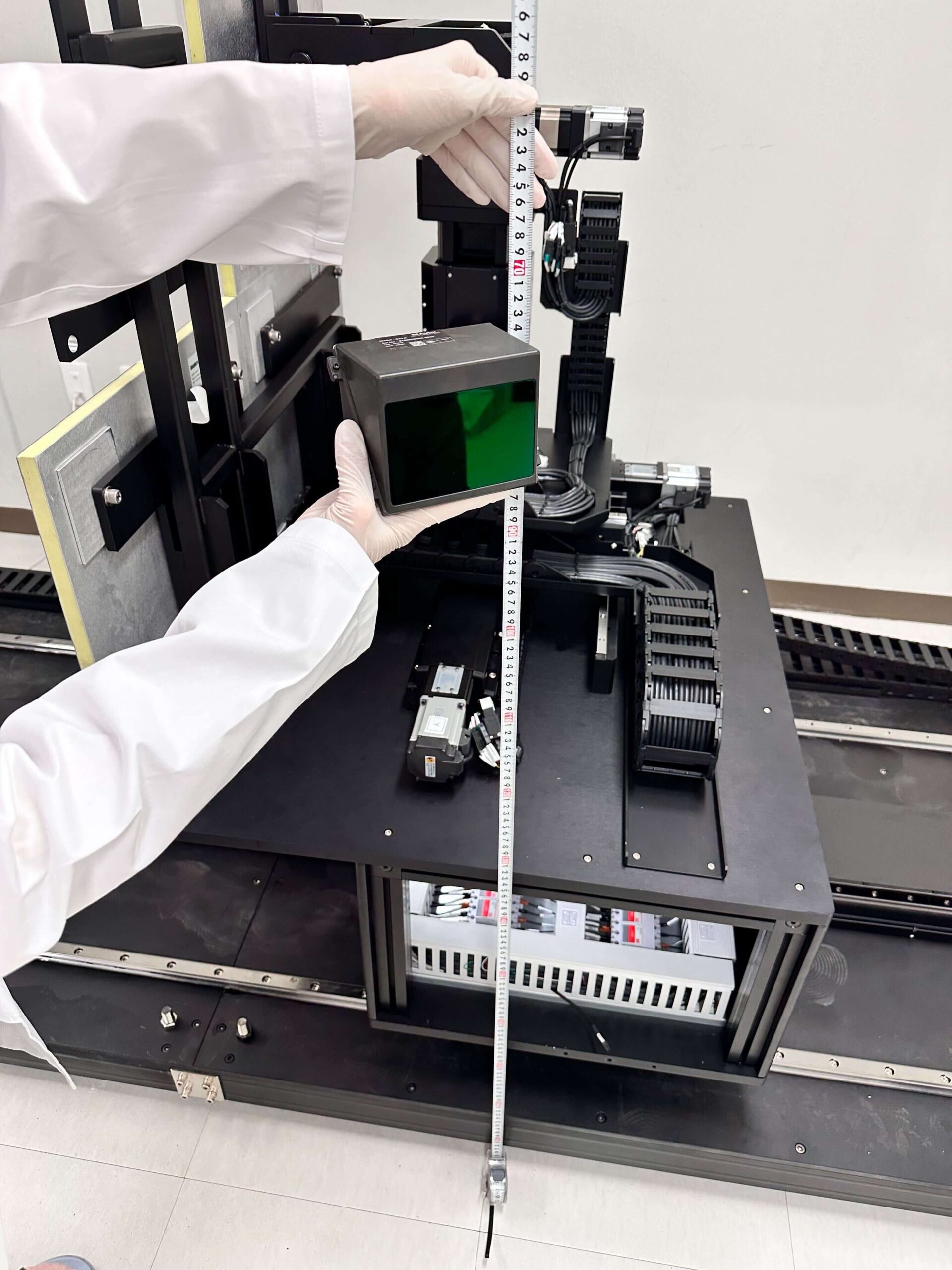

Drop test
Salt spray test
• Completed the environmental durability test of HMG (Hyundai Motor Group)
• Currently undergoing further improvements with high-temperature testing up to 105 ˚C and drop testing in progress
durability test of HMG
(Hyundai Motor Group)
• Currently undergoing further
improvements with high-temperature
testing up to 105 ˚C and drop testing
in progress
Durability test
Electronic Test
Waterproof Test
Vibration Test
Drop Test
Electronic Test
Waterproof Test
Vibration Test
Drop Test
Performance at an automotive-grade
Item
Result
Item
Result
Number of Channels
32
Frame Rate
25Hz
Viewing Angle (H/V)
135°×10°
Waterproof/Dustproof
IP67
Detection Range
0.8~250m@10%
Operating Temperature
-40~105°C
Viewing Angle Resolution
0.12°×0.3°
Storage Temperature
-40~115°C
Distance Resolution
4mm
Communication
1000-BaseT1
Distance Accuracy
Maximum ±3cm
Size
119×96×77mm
Item
Result
Item
Result결과
Number of Channels
32
Frame Rate
25Hz
Viewing Angle (H/V)
135°×10°
Waterproof/Dustproof
IP67
Detection Range
0.8~250m@10%
Operating Temperature
-40~105°C
Viewing Angle Resolution
0.12°×0.3°
Storage Temperature
-40~115°C
Distance Resolution
4mm
Communication
1000-BaseT1
Distance Accuracy
Maximum ±3cm
Size
119×96×77mm
Horizontal/Vertical Field of View (Resolution)
LiDAR Core Technology
the structure has been simplified, enabling long-distance detection, miniaturization,
and cost reduction compared to conventional LiDAR
Technology
the structure has been simplified, enabling long-distance detection, miniaturization,
and cost reduction compared to conventional LiDAR
Multiple transmission and reception modules in other companies’ LiDAR
(optical system with rotating mechanism that increases size and cost)
AutoEL LiDAR solves this with a single transmission and reception module
Multiple transmission and reception modules in other companies’ LiDAR
(optical system with rotating mechanism that increases size and cost)
AutoEL LiDAR solves this with a single transmission and reception module
