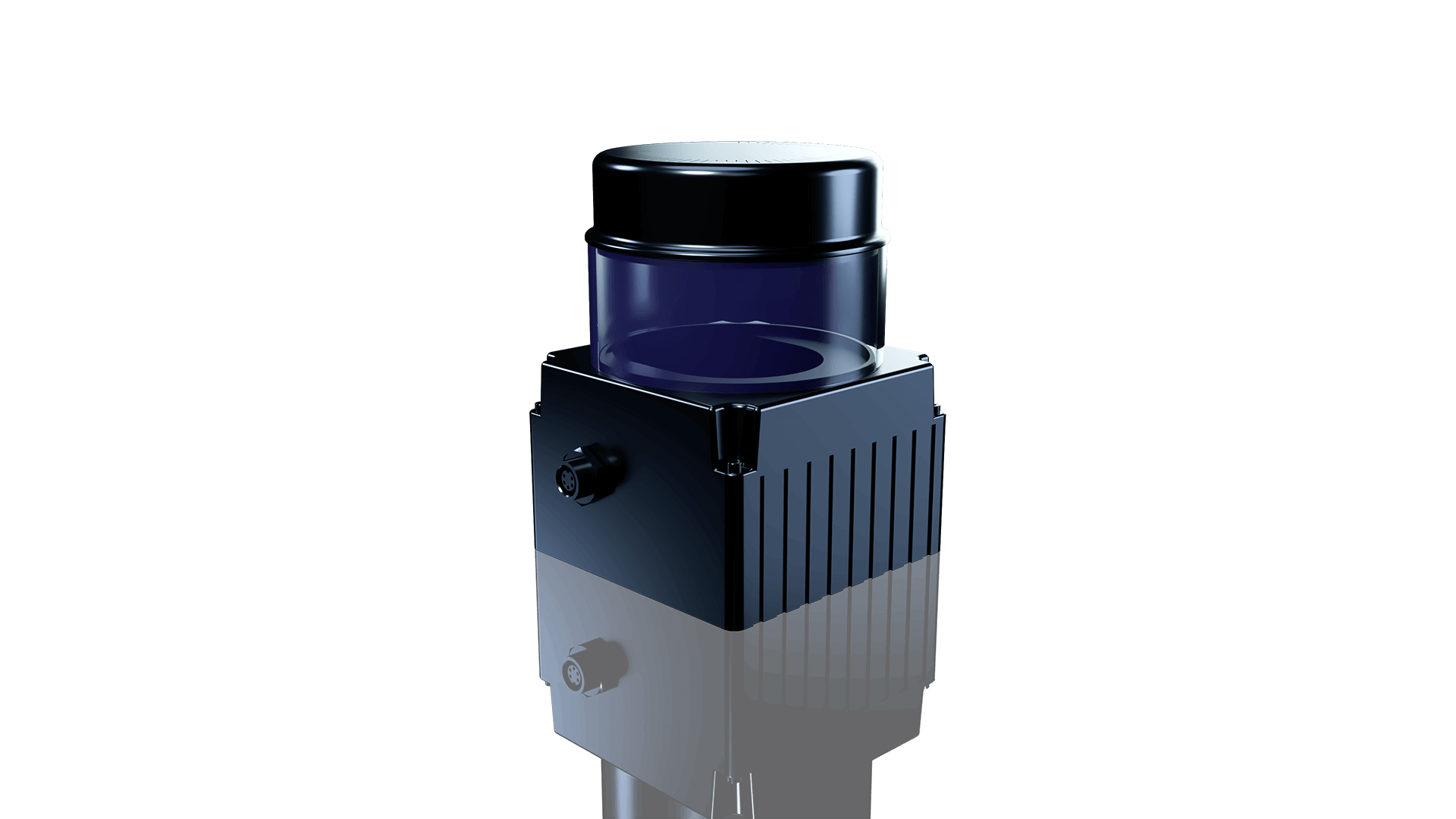

RX1 (Scheduled for release in 2026)
single-channel LiDAR optimized for indoor navigation robots
Premium high-resolution LiDAR sensor →
Ideal for automotive driving +
robot/perimeter surveillance
It is ideal for indoor logistics robots and parking robots,
with the versatility to function outdoors as well
This product offers superior environmental perception,
enabling robots to operate more safely and efficiently
Features
• Wide horizontal field of view of 275°
• Distance resolution of 4 mm
• Equipped with LiDAR interference filter technology
• Intensity detection for measuring the strength of received signals
Functions
• Number of channels : 1
• Range : 64m
• Horizontal FoV : 275°
• Horizontal angular resolution : 0.1°
• Reception technology : SiPM
Features
• Wide horizontal field of view of 275°
• Distance resolution of 4 mm
• Equipped with LiDAR interference filter technology
• Intensity detection for measuring the strength of received signals
Functions
• Number of channels : 1
• Range : 64m
• Horizontal FoV : 275°
• Horizontal angular resolution : 0.1°
• Reception technology : SiPM
Device
• Size (W x H x D) : 120x160x120mm
• Weight : 1kg
• Power consumption : 12V, 1A
• Operating temperature : -40ºC ~ 85º
• Storage temperature : -40ºC ~ 105ºC
Laser
• Wavelength : 905nm
• Laser classification : Class 1 – Eye Safety IEC60825-1:2014
Device
• Size (W x H x D) : 120x160x120mm
• Weight : 1kg
• Power consumption : 12V, 1A
• Operating temperature : -40ºC ~ 85º
• Storage temperature : -40ºC ~ 105ºC
Laser
• Wavelength : 905nm
• Laser classification :
Class 1 – Eye Safety
IEC60825-1:2014
Output
• Interface : Fieldbus, OSSD Pair
Software
(compatible with other LiDAR products),
ROS Driver provided
• Integrated web server for easy monitoring
and configuration of LiDAR
Output
(raw data) : TBD
• Interface : Fieldbus,
OSSD Pair
Software
• LiDAR Viewer
(compatible with other LiDAR products),
ROS Driver provided
• Integrated web server
for easy monitoring
and configuration of LiDAR
RX1
LiDAR optimized for indoor
navigation robots
boasting an expansive horizontal
field of view (FoV) of 275 degrees
Premium high-resolution
LiDAR sensor → Ideal for
automotive driving +
robot/perimeter surveillance
It is ideal for indoor logistics robots
and parking robots,
with the versatility to function
outdoors as well
This product offers superior
environmental perception,
enabling robots to operate
more safely and efficiently
Features
• Wide horizontal field of view of 275°
• Distance resolution of 4 mm
• Equipped with LiDAR interference filter technology
• Intensity detection for measuring the strength of received signals
Functions
• Number of channels : 1
• Range : 64m
• Horizontal FoV : 275°
• Horizontal angular resolution : 0.1°
• Reception technology : SiPM
Device
• Size (W x H x D) : 120x160x120mm
• Weight : 1kg
• Power consumption : 12V, 1A
• Operating temperature : -40ºC ~ 85º
• Storage temperature : -40ºC ~ 105ºC
Laser
• Wavelength : 905nm
• Laser classification : Class 1 –
Eye Safety IEC60825-1:2014
Output
• 3D Lidar Data Points (raw data) : TBD
• Interface : Fieldbus, OSSD Pair
Software
(compatible with other
LiDAR products),
ROS Driver provided
• Integrated web server
for easy monitoring
and configuration of LiDAR
