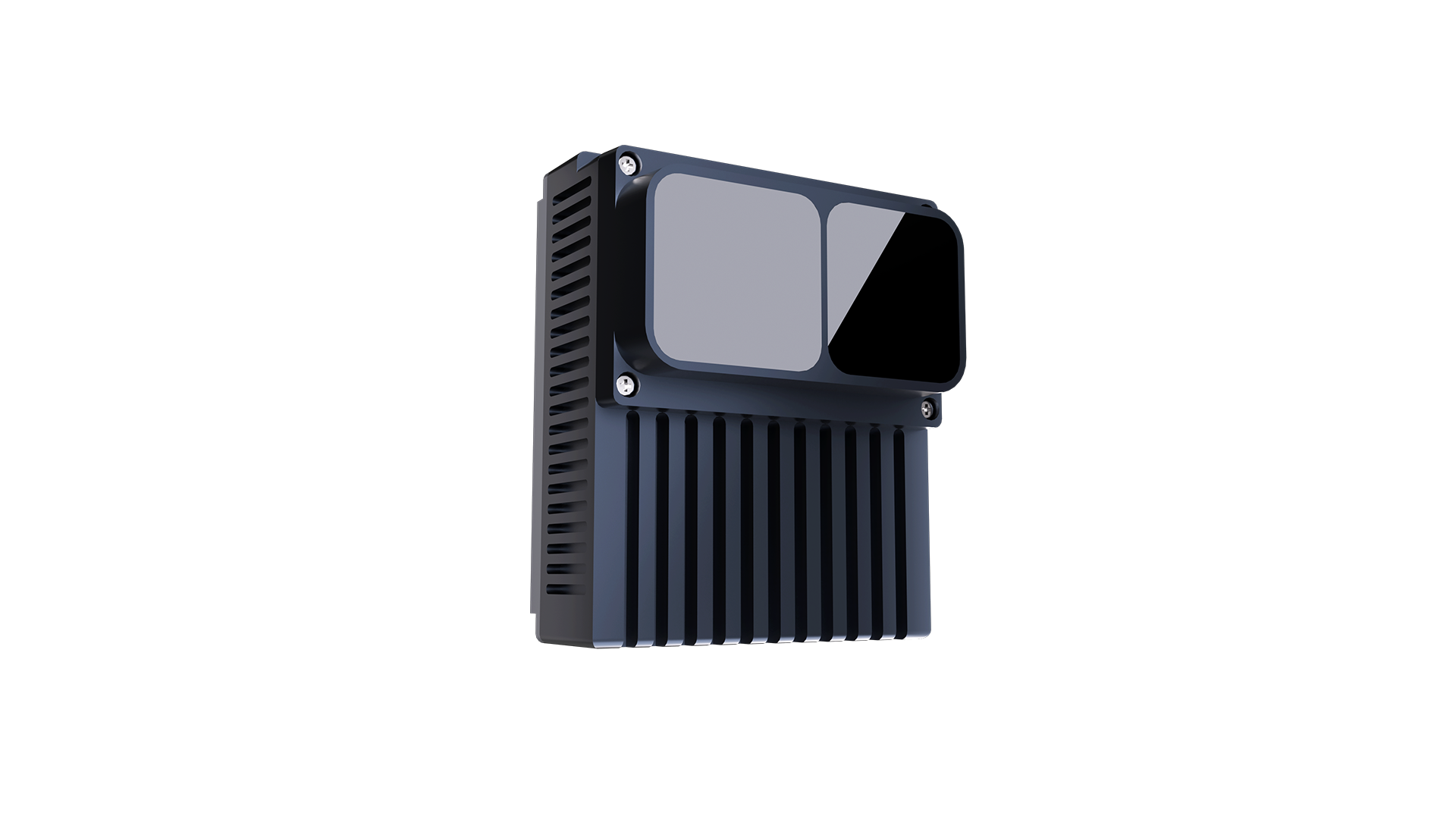

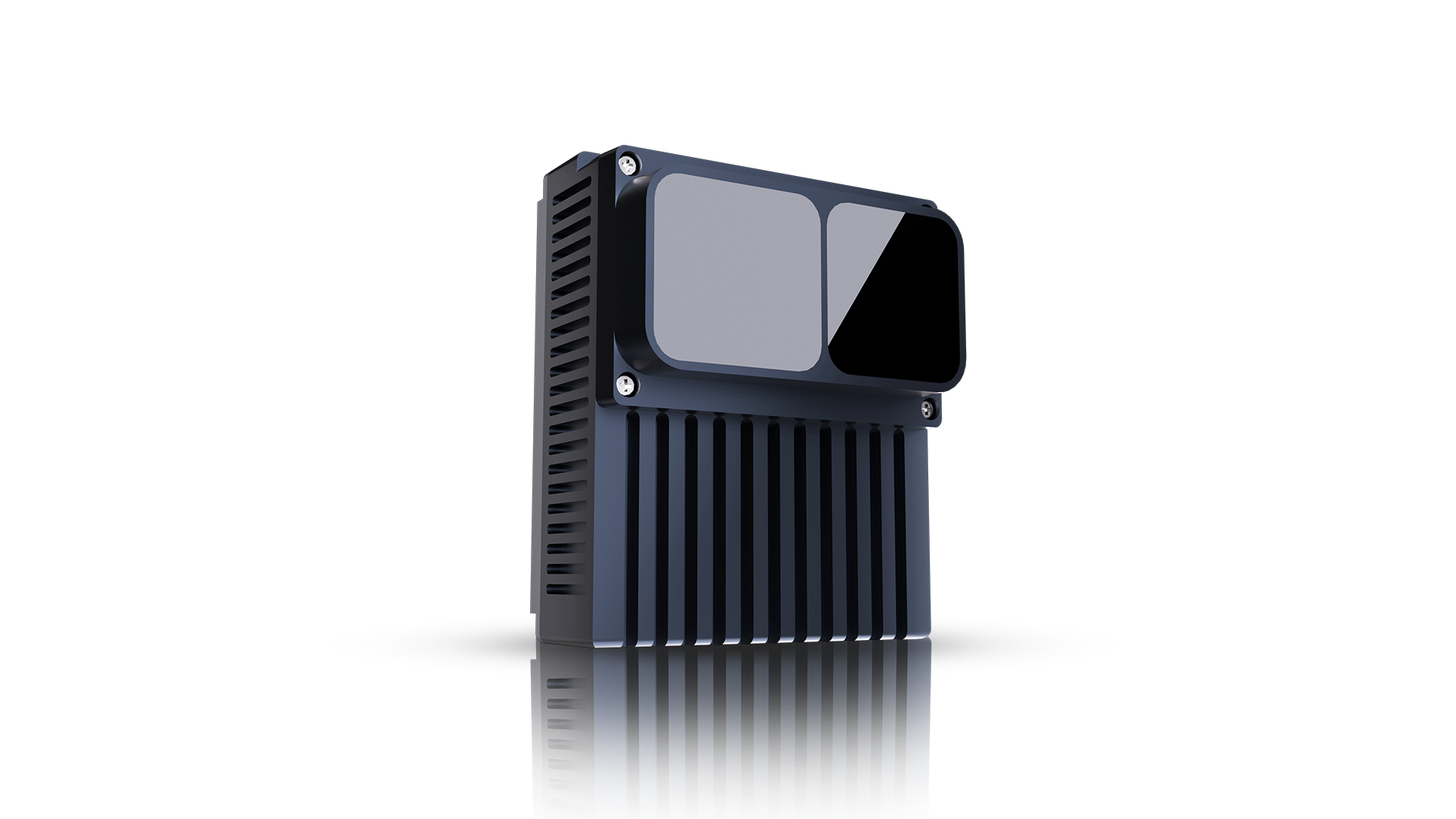

S192
S192 is a fixed LiDAR with an ultra-wide 90° vertical field of view (FoV)
designed without moving parts for continuous operation and high reliability against vibration and impact
It is suitable for various industries, including smart cities, robotics, perimeter surveillance, and smart factories
designed without moving parts for continuous operation
and high reliability against vibration and impact
It is suitable for various industries, including smart cities, robotics,
perimeter surveillance, and smart factories
Features
• Despite its compact size, it offers a wide field of view: 120° horizontal and 90° vertical
• Built-in heating element for defrosting in low-temperature conditions
• Features LiDAR interference filter technology
• Intensity detection for measuring the strength of received signals
• Ambient light output for detecting surrounding brightness
• Maximum detection range of up to 50 meters
Functions
• Number of channels : 192
• Range : 50m
• Horizontal FoV : 120°
• Horizontal angular resolution : 0.47°
• Vertical FoV : 90°
• Vertical angular resolution : 0.47°
• Frame rate : 10, 20fps
Features
• Despite its compact size, it offers a wide field of view: 120° horizontal and 90° vertical
• Built-in heating element for defrosting in low-temperature conditions
• Features LiDAR interference filter technology
• Intensity detection for measuring the strength of received signals
• Ambient light output for detecting surrounding brightness
• Maximum detection range of up to 50 meters
Functions
• Number of channels : 192
• Range : 50m
• Horizontal FoV : 120°
• Horizontal angular resolution : 0.47°
• Vertical FoV : 90°
• Vertical angular resolution : 0.47°
• Frame rate : 10, 20fps
Device
• Size (W x H x D) : 100x80x50mm
• Weight : 800g
• Power consumption : 12V, 1A
• Operating temperature : -40ºC ~ 85º
• Storage temperature : -40ºC ~ 105ºC
Laser
• Wavelength : 940nm VCSEL
• Laser classification : Class 1 – Eye Safety IEC60825-1:2014
Output
• 3D Lidar Data Points (raw data) : 3 echo
• Interface : 1000Base-T (1Gbps)
Software
(compatible with other LiDAR products),
ROS Driver provided
• Integrated web server for easy monitoring
and configuration of LiDAR
Output
• 3D Lidar Data Points
(raw data) : 3 echo
• Interface : 1000Base-
T (1Gbps)
Software
(compatible with other
LiDAR products),
ROS Driver provided
•Integrated web server
for easy monitoring
and configuration
of LiDAR
S192
S192 is a fixed LiDAR
with an ultra-wide 90°
vertical field of view (FoV)
designed without moving
parts for continuous operation
and high reliability against
vibration and impact
It is suitable for various
industries, including smart cities,
robotics, perimeter surveillance,
and smart factories
Features
• Despite its compact size, it offers a wide field of view: 120° horizontal and 90° vertical
• Built-in heating element for defrosting in low-temperature conditions
• Features LiDAR interference filter technology
• Intensity detection for measuring the strength of received signals
• Ambient light output for detecting surrounding brightness
• Maximum detection range of up to 50 meters
Functions
• Number of channels : 192
• Range : 50m
• Horizontal FoV : 120°
• Horizontal angular resolution : 0.47°
• Vertical FoV : 90°
• Vertical angular resolution : 0.47°
• Frame rate : 10, 20fps
Device
• Size (W x H x D) : 100x100x80mm
• Weight : 500g
• Power consumption : 12V, 1A
• Operating temperature : -40ºC ~ 85º
• Storage temperature : -40ºC ~ 105ºC
Laser
• Wavelength : 940nm VCSEL
• Laser classification : Class 1 –
Eye Safety IEC60825-1:2014
Output
(raw data) : 3 echo
• Interface : 1000Base-T
(1Gbps)
Software
(compatible with other
LiDAR products),
ROS Driver provided
• Integrated web server
for easy monitoring
and configuration of LiDAR
